Zinc belt
产品大图

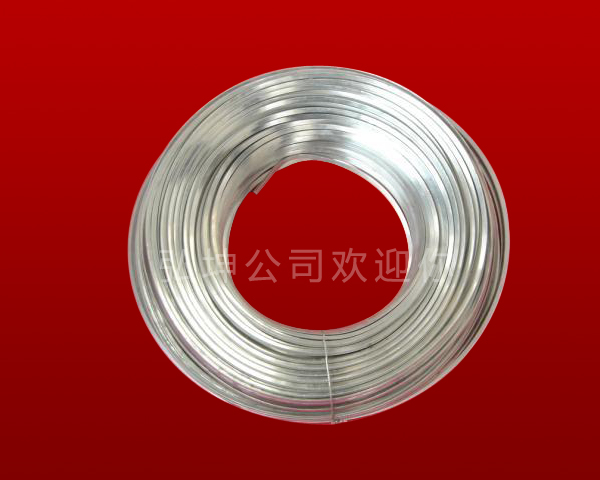

  • Zinc belt
Product description

  Main purpose:Zinc anode is widely used in petroleum, chemical, Marine engineering, transportation, electricity, municipal engineering and other fields, is typically used for resistivity is lower than 2000 Ω. Cm medium; If the protection of steel structure has good coating or under the condition of soil moisture, zinc anode can be used to bring over 2000 Ω. Cm medium. In order to improve the use of zinc strip anode performance, filling material can be used, the standard of filling material is calcium sulfate added bentonite, to absorb and retain water, reduce the resistance.

  Execution standard: ASTM B 843-1995 SY/T0019-1997

  Chemical composition

kind

AlCdFe(Max)Pb(Max)Cu(Max)Zn
I0.1-0.50.02-0.070.0050.0060.005

allowance

II0.005(Max)0.003(Max)0.00140.0030.002

allowance

High purity zinc

0.003(Max)0.002(Max)0.0010.0030.001

allowance



specifications

modelsize(mm)Single heavy(g/cm)
A(mm)B(mm)C(mm)
特大(A)25.431.7530.535.72
大(B)15.8822.236117.82
标准(C)12.714.281528.93
小(D)8.7311.913053.72
